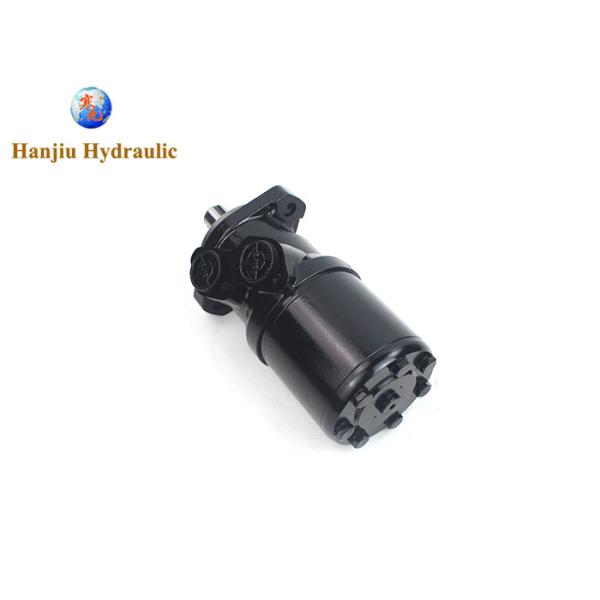

BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports

Brand Name : Hanjiu

Model Number : BMR400

Certification : ISO9001:2015

Place of Origin : China

MOQ : 50 units

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal .

Supply Ability : 100,000 units / Year

Delivery Time : 10-15 working days

Packaging Details : Carton packing , with a tray or wooden box if needed .

Product name : Hydraulic Orbit Motors

Displacement : 400CC

Applications : sweepers, road sweepers,trenchers,augers

Replacement : OMR400,MR400,SMR400

ports size : bspp G1/2

shaft : 1" 6B splined shaft

Contact Now


BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports



Product details:

product type BMR 400, OMR400, MR400, SMR400 spool valve motor
displacement 400cc
flange 2-φ13.5 Rhomb-flange pilot φ82.5x8
shaft 1"6B Splined Shaft
oil ports G1/2 manifold mount 4-M8,G1/4 drain ports


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5



Recommended use:
Wrappers, forage harvesters, spreaders
Sweepers, sandblasters, snowblowers
Cutters for carrots, beets, onions and others
Leaf and branch scrapers
Conveyor drives
Chippers and branch shredders
Forest winches and vehicle winches
Orchard drill rigs and ground drill rigs

BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp PortsBMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp PortsBMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp PortsBMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports




BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports
