DCV 200 6 levers Manual control hydraulic Directional Control Valve, max pressure 350bar
| Norminal Flow | 200 L/min |
| Max Flow | 52.5 GPM |
| Max Pressure | 350 bar/5076PSI |
| Control Type | manual ( pneumatic, hydraulic, electro-hydraulic available ) |
| Allowed back pressure | ≤1 mpa |
| Oil port size | customizable |
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| | max 400 MM2/S |
| Structure | sectional 1-12sections |
Description
Introducing the DCV200 hydraulic Directional Control Valve, designed to efficiently manage high-pressure hydraulic systems used in various industries including drilling machines and sanitation applications.
This valve comes with auxiliary valves such as over-load valve, anti-cavitation valve, and combined valve, to ensure smooth operation and prevent damage to your system. With various control types including manual, pneumatic, electro-pneumatic, and electro-hydraulic, the DCV200 valve provides you with the flexibility to choose the control type that best fits your specific needs.
The valve’s sectional structure makes it easy to install and maintain, while the carry-over port serves as a hydraulic source for other parts, providing a reliable and convenient solution for your hydraulic system needs. Choose the DCV200 hydraulic Directional Control Valve for a dependable and efficient solution for your high-pressure hydraulic system.
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread |
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | | |
| | | M27 | M27X2 | | | | |

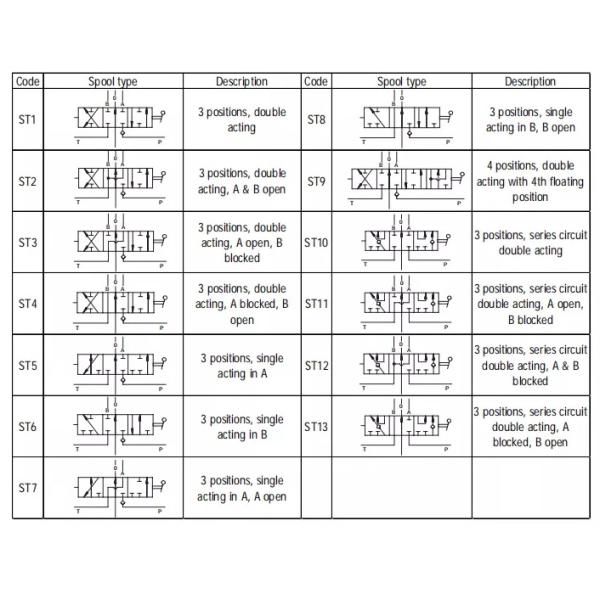

spool functional
