Hydraulic Wheel Motor BMRW For Wheel Drive Application of Trenchers, Mowers
BMR series of motor, with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and mining machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the worktable etc.
PRODUCT INTRODUCE:
- Can be used on Hydraulic Trencher Bobcat
- Can be used on Bobcat Skid Steer Loader 60-115 LPM
- we also have hydraulic motor to replace High End 2K EATON hydraulic motor
- Can be used on DIGGA Hydraulic Trencher and Excavators
- 12 months warranty from date of professional installation
- High volumetric efficiency
- High starting torque
- Heavy-duty bearings
- Direct drive so no gears required
When ordering and replacing a hydro pump, always replace the wheel motor and lines, flush the tanks and install a new oil filter. Not doing so could cause the hydro pump to fail due to contamination in the system.
PRODUCT APPLICATIONS:
- Skid Steer Loaders
- Fairway Mowers
- Harvesters
- Vehicles where space
- Snow removal
- Agricultural sprayers
- Trenchers
- Wood mill products
- Brush cutters
- Mower
- Haveresting equipment
- Forestry equipment
- Turf equipment
BMR series including BMR, BMRS BMRW version. Here we introduce BMRW.
| TYPE | BMRW-50 | BMRW-80 | BMRW-100 | BMRW-125 | BMRW-160 | BMRW-200 | BMRW-250 | BMRW-315 | BMRW-400 |
| Displacement(ml/r) | 51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 |
| Max.Pressure.Drop(Mpa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 |
| peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 |
| Max.torque(N.m) | cont. | 93 | 152 | 194 | 237 | 310 | 369 | 380 | 380 | 380 |
| int. | 118 | 189 | 236 | 296 | 378 | 450 | 470 | 470 | 470 |
| peak. | 135 | 216 | 270 | 338 | 433 | 509 | 540 | 540 | 540 |
| Speed.Range(cont.)(r/min) | 10-775 | 10-750 | 10-600 | 9-475 | 7-375 | 5-300 | 5-240 | 5-190 | 5-160 |
| Max.Flow(cont.)(L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max.Output.Power(cont.)(Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 |
| Weight(kg) | 6.5 | 6.9 | 7 | 7.3 | 7.5 | 8 | 8.5 | 9 | 11 |

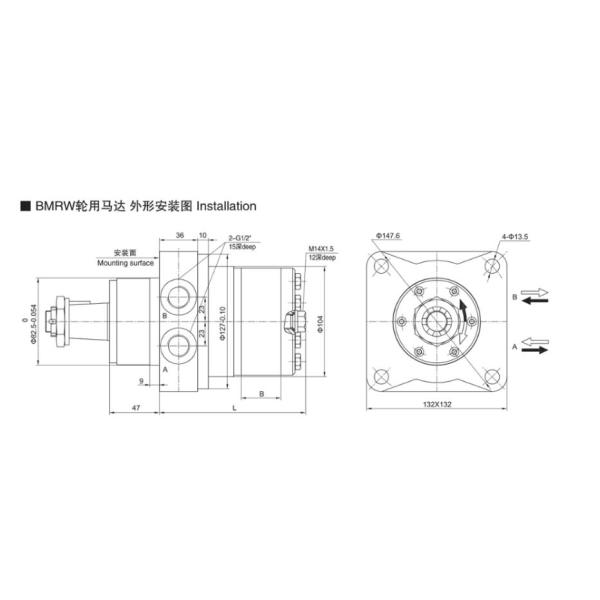

| L | 108 | 113 | 117 | 121 | 127 | 134 | 143 | 155 | 169 |
| B | 9 | 14 | 17.5 | 22 | 28 | 35 | 44 | 56 | 70
|
| OEM | yes |
| Lead Time | 10 - 15 work days |
| Payment | L/C,T/T |
| 30% advance payment,the balance paid before shipment |
| Packing | Motor each have their own carton, the outer packing is a five-layer plywood boxes |
| Shipping | 1)By air or sea or combined transportation |
| 2)Express:TNT,FEDEX,UPS,DHL |
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
